PoE LED can adjust the light through the sensor, time switch, remote switch, etc. to achieve energy saving, and can display the amount of energy saving in the system

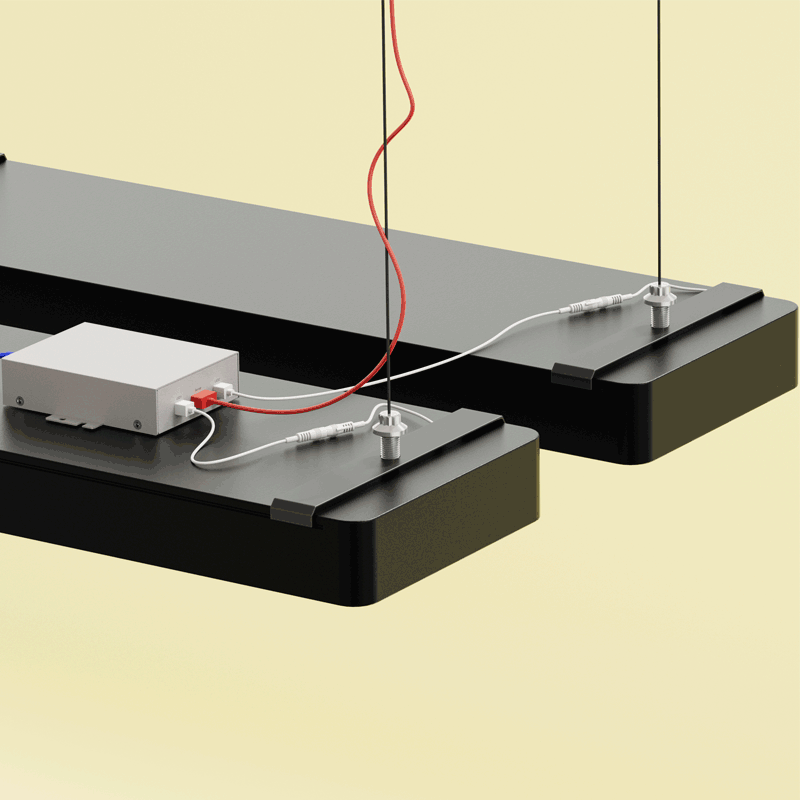

PoE power supply, 55V DC low-voltage power supply,construction safety,power up to 80W,centralized power management

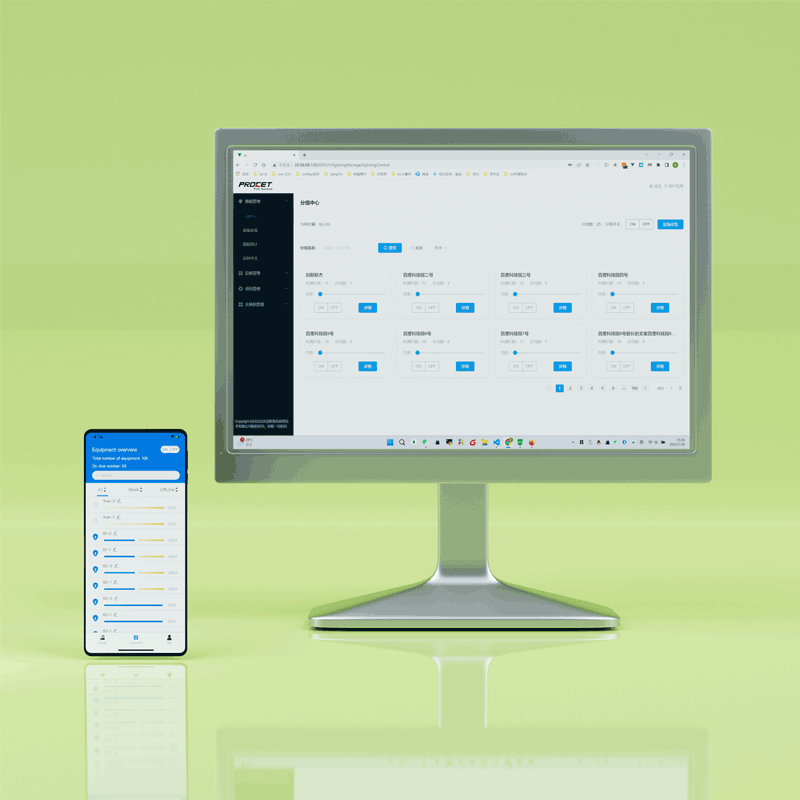

PoE LED can be managed in a unified manner through the network,controlled by a mobile phone,saving management costs

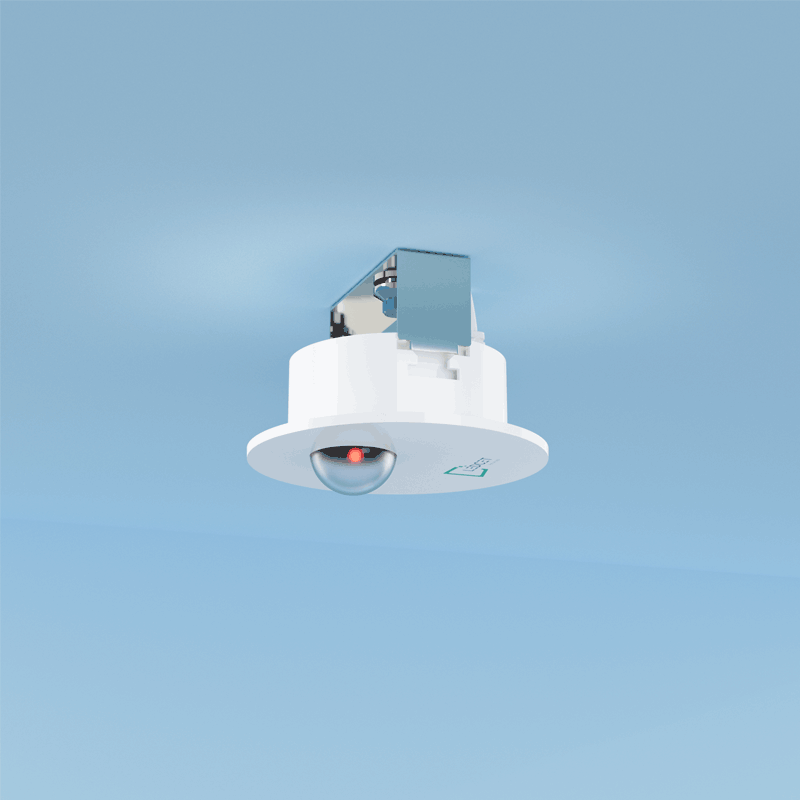

By using sensors, the light can be adjusted to increase comfort, as well as intelligent switches and automatic control
Product Introduction LEDCET MS V1.0 intelligent management software, based on the poe network system, can effectively manage each LED lamp, and set different management strategies for different areas. One manager can effectively manage thousands of LED lamps, saving a lot of money in the year energy and provide a comfortable lighting environment for everyone. LEDCET MS V1.0 is developed based on the LUNIX operating system. The system is stable and has good scalability, and other related functions can be added. LEDCET MS V1.0 is embedded in LEDCET equipment, small office environment can use PL-POS8B-2U-M (POE LED Switch), large office environment can use PL-SER-1M (POE LED Server) Advantages of server-side operation PoE LED system power supply and network management is an innovative technology that applies PoE technology to LED lighting systems and realizes convenient and intelligent network management through server-side operation.PoE technology transmits data and power over Ethernet cables, so that LED lighting systems do not require additional power lines, simplifying installation and maintenance. Server-side operation is one of the key advantages of this technology. With server-side software, users can easily control and manage the LED lighting system. The following are some of the outstanding advantages: Centralized control Using server-side operation, the management of the LED lighting system can be centralized in one interface. Users can control multiple lighting devices at the same time, adjusting brightness, color temperature, lighting modes, etc., providing more flexible and convenient control. Energy-saving scheduling Server-side operation allows users to perform fine energy-saving scheduling of the LED lighting system. By setting the timer switch and auto dimming function, intelligent energy management can be realized according to the usage demand, minimizing energy waste. Data analysis and optimization Server-side operation also provides detailed data analysis functions, such as energy consumption statistics and usage pattern analysis. These data can help users optimize the use of LED lighting systems to further improve energy efficiency and reduce maintenance costs. Summary PoE LED system power supply and intelligent network management provides a convenient, flexible and intelligent way of controlling and managing LED lighting systems through the advantages of server-side operation. It not only saves installation costs and maintenance workload, but also provides a more efficient and reliable lighting solution. PC client display
Product Introduction LEDCET APP V1.0 is based on the cloud platform, and the status of POE LED lights can be seen and controlled anytime, anywhere through the mobile phone. LEDCET APP is compatible with Apple and Android systems. LEDCET APP can carry out secondary development according to customer's requirements to meet customers' personalized requirements for POE LED. Advantages of cell phone operation The PoE LED Smart Lighting System provides a convenient, flexible and reliable solution for integrating power and network data transmission into a standard Ethernet cable. This article will focus on the advantages of PoE LED system power supply and network management and emphasize the importance of cell phone operation in this system. Advantages of PoE power supply 1.Simplify installation: PoE can provide low-voltage DC power and data transmission of less than 55V for LED lights through a single Ethernet cable, avoiding additional power line installation and reducing maintenance costs. 2.Flexible layout: PoE allows LED lights to be arranged in a more flexible location, because they are no longer subject to the limitations of the power hole, it can better meet the lighting needs. 3.Efficient Energy Utilization: PoE uses energy-efficient centralized energy transmission technology to achieve effective management of power and energy savings, which has a positive impact on the improvement of environmental awareness. LED system network management advantages 1.Centralized control: Through the network management software, users can monitor and manage the LED system remotely at any time to improve operation and maintenance efficiency. 2.Adjustment of lighting settings: Using network management, users can flexibly adjust the lighting settings according to the actual needs, such as dimming, color mixing, timer switch, etc., it can provide more comfortable and energy-saving lighting effect. 3.Real-time data analysis: Through the network management system, the data of LED system can be collected and analyzed, such as energy consumption, lighting time, etc., it can help users make smarter energy decisions. Advantages of cell phone operation 1.Convenience: through the cell phone application, users can manipulate the LED system anytime and anywhere, convenient and fast remote control and management. 2.real-time: mobile operation provides real-time feedback and control, allowing users to adjust lighting settings in time to meet the needs of specific moments and scenes. Summary PoE LED system power supply and network management brings the lighting system into a more advanced and intelligent stage. Cell phone operation, as an important part of this, provides users with a convenient, real-time and personalized control experience, making the LED lighting system more flexible and intelligent. The application of this technology will change the lighting industry and bring users more comfortable, efficient and sustainable lighting solutions. App display
Product Introduction PoE-LED intelligent lighting is based on PoE network power supply to achieve intelligent lighting system, using sensors and algorithms to automatically control the brightness, color and other parameters of the lighting system, can improve the efficiency and comfort of lighting, while reducing energy consumption and environmental impact, improve the stability of the system. PL-SW04 wireless switch is a combination of network power supply technology and radio frequency remote control technology. In the traditional PSE end, MCU and wireless remote control receiving module are added to realize the remote control of PSE power supply and power size. Special functions can also be achieved by special operation of the buttons on the wireless remote control transmitting part. It has the characteristics of convenient operation and simple control, which improves the convenience of using POE power supply system. Connection Scheme LED Switch technical parameter table Model PL-SW04 Name Quadruple link switch Output voltage DC12V 13mA Control distance 30M(depends on the environment) Adaptive battery 27A 12V Operating temp -20-65℃ Rated frequency 315-433MHz Control type Radio frequency control
Product Introduction PoE-LED intelligent lighting is based on PoE network power supply. Sensors and algorithms are used to automatically control the brightness, color, and other parameters of the lighting system. This improves lighting efficiency and comfort, reduces energy consumption and environmental impact,and improves system stability. PL-POS16B-2U is used for indoor LED lighting. PoE-LED 16-port Switch has AC input of 90-260V,and the total power of 16-way output reaches 480W. It can supply power to 16 drivers,or connect 15 drivers and 1 switch. According to the actual needs, different collocation can be carried out to meet different usage scenarios, and it can be widely used in the field of office and building lighting. Advantages of 16 Port PoE LED Switch 1.PoE-LED 16-port switch, AC input 90-260V, 16-channel output power up to 480W;2. It can power 16 drivers, or connect 15 drivers and 1 switch;3. It is mainly used for indoor LED lighting. It can be matched according to actual needs to meet different usage scenarios. It can be widely used in office and building lighting fields;4. Simple plug-and-play setup, no need to install or configure software;5. Support desktop or wall-mounted placement;6. Comply with IEEE802.3bt standard, silent operation, very suitable for noise sensitive environment; LED Switch technical parameter table Model PL-POS16B-2U Data Speed 10/100/1000Mbps Input 90-260V ac 7.2A 50/60Hz Protocol IEEE802.3 bt Class 8 Power Pins 4、5 ( + ) 7、8 ( - ) & 3、6 ( + ) 1、2 ( - ) Output voltage 44-57V dc single channel Output current 1700mA single channel Output power 480W Max Communication MQTT Port 16*PoE +2*LAN+2*SFP PoE Control Automatic/Manual/Force Switching mode Wired/wireless switch Management Remote management available Safety Overvoltage/overcurrent protection Speed PoE:10/100/1000Mbps LAN:10/100/1000Mbps SFP:1G Operating temp -20℃ to 60℃ Operating humidity 20% to 80%, non-condensing Storage temp -40℃ to 150℃ Storage humidity 10% to 90%, non-condensing Material Metal Color Black Indicator light Green:PoE Yellow:Data Mounting Wall-mounted IP Rated IP40 Size 360 X 140 X 91mm Connection Scheme Installation Matters 1.Connect the power supply Connect the power supply to the PoE Switch. After inserting the AC cable, secure it using a buckle to prevent power failure. 2.Connection network Use a network cable to connect the Uplink port of the PoE Switch, or use 1 Gbit/s optical fiber to connect the SFP port. Power supply connection diagram Connection network diagram 3.Connection drive Connect the Switch to the driver for data and power transmission. 4.Connection switch Connect the PoE port on the Switch to the switch for data transmission and control the switch of the indicator. Connection driver diagram Connection switch diagram
