PL-DR02AT is a two-channel output control, based on IEEE802.3AT standard PoE power intelligent LED driver.
Product Information :
PL-DR02ATProduct Introduction
Our 2-channel intelligent LED driver driver for indoor LED lighting complies with IEEE802.3AT standard. The two-channel output control can supply power for two LED lights, the total power generally does not exceed 30W, and each light can be controlled individually through settings or system configuration. The PoE-LED driver is a constant current power supply, the power supply range is 50V-57V, and the input and output of the power supply do not exceed the safe voltage range of 57VDC. It is recommended to choose a suitable lamp, and the power supply efficiency of the driver is better.
Advantages of 2 Channel LED Lighting Drivers
1. The IEEE 802.3at standard allows greater power transfer capability than previous PoE standards.
2. Centralized control and monitoring: With PoE technology, the LED driver can communicate with the centralized control system or building management system via Ethernet.
3. The installation and construction are convenient, and the integrated design of two power supplies and one sensor eliminates the need for separate wiring of power supplies and control signals, reducing installation and equipment costs.
4. Products are widely used in office and architectural lighting fields.

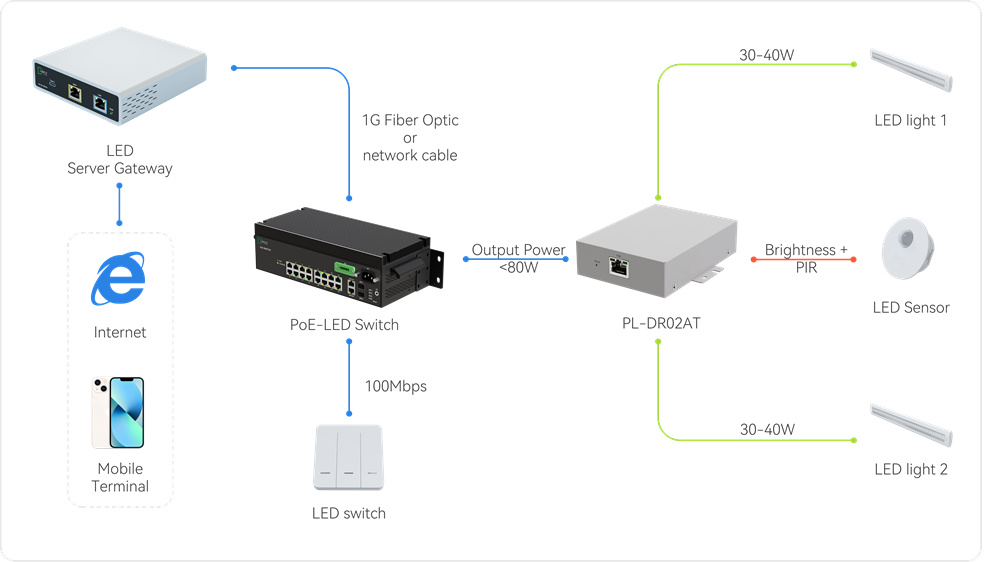

Connection Scheme
| LED Driver technical parameter table | |||
| Model | PL-DR02AT | Data Speed | 10/100Mbps |
| Input | 44-57V dc 1.7A | ||
| Protocol | IEEE802.3 bt Class 8 | ||
| Power Pins | 4、5 ( + ) 7、8 ( - ) & 3、6 ( + ) 1、2 ( - ) | ||
| Output voltage | 5-55V dc | Output current | 650mA single channel |
| Output port | 5.5*2.5mm female plug *2+ RS485 *1 | ||
| Communication | MQTT | ||
| Frequency | 20KHz | ||
| Duty cycle | 10%-100% | ||
| Dimming | Microwave / brightness / manual | ||
| Management | Remote management available | ||
| Safety | Overvoltage/overcurrent protection | ||
| Color temp | Natural light / cool white / warm white | Brightness range | Monochrome(1000-8191) |
| Lamp | Energy-saving lamps / light strips / light bars / ceiling lamps / pendant lamps / floor lamps, etc. | ||
| Operating temp | -20℃ to 60℃ | Operating humidity | 20% to 80%, non-condensing |
| Storage temp | -40℃ to 150℃ | Storage humidity | 10% to 90%, non-condensing |
| Material | Metal | Color | Silver |
| Indicator light | Green：PoE Yellow：Data | ||
| Mounting | Wall-mounted | IP Rated | IP40 |
Installation Matters
|
1.Connecting a PoE Switch PoE In input port Connects to a PoE switch that complies with the IEEE 802.3BT standard through a Cat5e network cable. |
2.Connected LED light LED1 and LED2 output ports connect LED lights that meet voltage and current requirements and support various types of lights.lamps, etc. |
|
|
|
|
Diagram of connecting switch |
Schematic diagram of connecting LED lights |
|
3.Dual circuit control lights It can independently control the switching state and brightness of two LED lights. |
4.Single channel control light By setting, two outputs can be connected to one LED light, realizing unified switch and brightness adjustment. |
|
|
|
|
Diagram of dual circuit control lights |
Schematic diagram of single channel control light |
